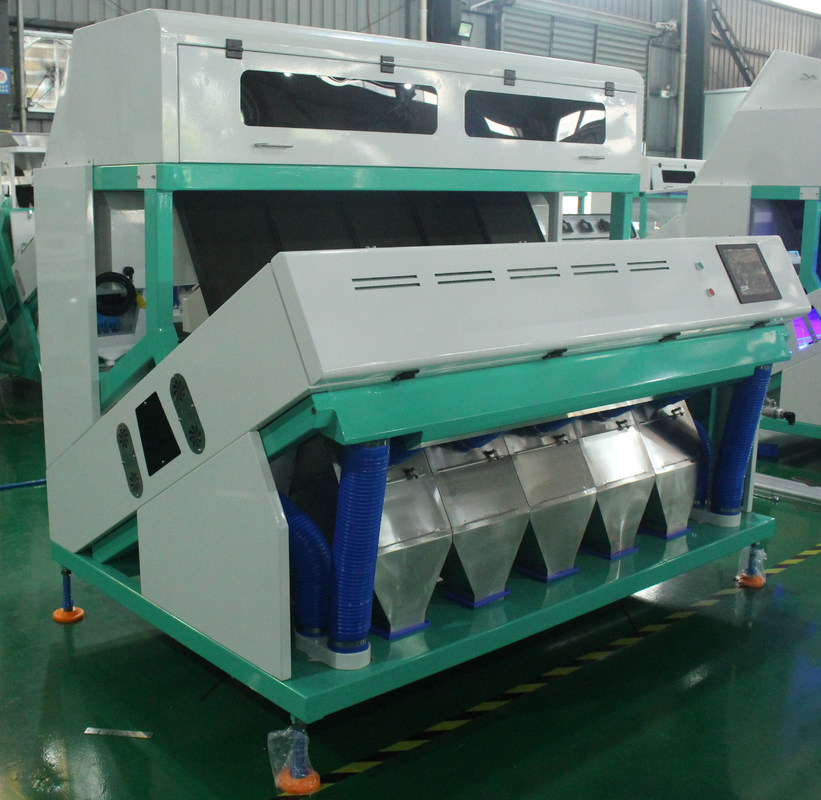

Full CCD Rustproof 4.0kw Sesame Raisin Nuts Color Sorter
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Nage |
| Certification: | CE SGS |
| Model Number: | 6XM-320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 Sets |
|---|---|
| Packaging Details: | Our products use professional wooden cases within PE plastical bag.Package size will depend on each model size. |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Farms, Grain Agriculture | After Warranty Service: | Field Maintenance And Repair Service |
|---|---|---|---|
| Condition: | New | Production Capacity: | 6~12t/h |
| Voltage: | 220v | Power(W): | 4.0kw |
| Weight: | 1100kg | Dimension(L*W*H): | 2400*1536*1690 |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Name: | Sesame Seed Peanut Raisin Color Sorter Machine Sorting Machinery | Function: | Sorting Beans |
| Model No.: | 6XM-320 | Channels: | 5 |
| Type Of Sensor: | Japan Toshiba CCD Sensor | Accuary: | More Than 99% |
| Carryover Rate(BadGood): | 10:1 | ||
| High Light: | 4.0kw Nuts Color Sorter,4.0kw raisin color sorter,rustproof sesame color sorter |
||
Product Description
Sesame Seed Peanut Raisin Color Sorter Machine Sorting Machinery
Products Description
CCD Camera Sorter is specially designed as per the requirements of our clients. It is another product in the line of CCD Camera that is based on colour sorters and is outcome using Colour Sorting machinery for the past two decades only at Spectrum Industries. Coming to its design, the expert has crafted this 2048 pixel camera with advanced digital technology. It is equipped with large format lenses along with digital automatic LED backlights that proffer it high imaging power. Discussing its body, this is having a display of 15" Colour TFT screen perfect for online viewing and monitoring of products.
- LED Solid state high-intensity long-life stable lightning
- On-line live visual display of product being sorted on 15” Colour LED TFT screen
- Ultra-fast long life pneumatic ejectors with a response time of 1ms and life of up to 5 billion cycles
- Automatic cleaning of viewing area by wiper system
- Automatic online calibration with self-check procedures
- Fully computer controlled
Product Parameter
| model | 6SXM-640 | 6SXM-448 | 6SXM-512 | 6SXM-320 | 6SXM-384 |
| chutes, No. | 640 | 448 | 512 | 320 | 384 |
| product output | 8.0-18 | 5.0-12 | 6.0-14 | 3.5-8.0 | 4.0-10.0 |
| sorting accuracy | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
| optimized carryover | 8:1 | 8:1 | 8:1 | 8:1 | 8:1 |
| weight(kg) | 1650 | 1410 | 1590 | 1050 | 1230 |
| minium identification | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| power (kw) | 5.5 | 4 | 4.5 | 2.5 | 3.5 |
| power supply (v/hz) | AC220/50 | AC220/50 | AC220/50 | AC220/50 | AC220/50 |
| Dimension (l*w*h)mm | 3846*1587*1968 | 3060*1536*1690 | 3367*1536*1690 | 2400*1536*1690 | 2715*1536*1690 |
Why choose Nage?
1. Hefei nage Photoelectric Technology Co., Ltd. is a high-tech enterprise engaged in the R & D, production and sales of high-end intelligent color sorter.
2. We have an enterprising and innovative team, and have formed a quality, efficiency and customer satisfaction oriented business model, and constantly expand new application areas
3. With the vision of enriching and improving the quality of human life, we use our professional knowledge and experience in the field of optical mechanical and electrical integration to help people in different regions conveniently and quickly classify the
defective materials with color difference accurately, improve the use level, and create the best economic and social benefits.
4. At present, the products have been widely used in the intelligent separation of rice, grains, plastics, ores, traditional
Chinese medicine, seeds, beans, nuts, tea and other food, economic crops and industrial products
5. The company expands the market by the quality, the sales network covers the world. The products sell well all over the country, and are exported to more than 20 countries and regions in Europe, North America, South America, Africa and Asia. They are highly praised by users at home and abroad
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage.
2. We have an enterprising and innovative team, and have formed a quality, efficiency and customer satisfaction oriented business model, and constantly expand new application areas
3. With the vision of enriching and improving the quality of human life, we use our professional knowledge and experience in the field of optical mechanical and electrical integration to help people in different regions conveniently and quickly classify the
defective materials with color difference accurately, improve the use level, and create the best economic and social benefits.
4. At present, the products have been widely used in the intelligent separation of rice, grains, plastics, ores, traditional
Chinese medicine, seeds, beans, nuts, tea and other food, economic crops and industrial products
5. The company expands the market by the quality, the sales network covers the world. The products sell well all over the country, and are exported to more than 20 countries and regions in Europe, North America, South America, Africa and Asia. They are highly praised by users at home and abroad
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage.
Nage Color Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in
the materials, the ejector will blow the defective goods in the hopper
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in
the materials, the ejector will blow the defective goods in the hopper
In customer site :
Exhibition :
Our company :
Certificate
|
Packaging & Delivery
|
|
|
|
|
||||
|
Packaging Details
|
Our products use professional wooden cases within PE plastical bag.Package size will depend on each model size.
|
|
|
|
||||
|
Port
|
shanghai
|
|
|
|
||||
|
Lead Time :
|
Quantity(Sets)
|
1 - 1
|
2 - 2
|
>2
|
||||
|
|
Est. Time(days)
|
7
|
10
|
To be negotiated
|
||||
Packing & Delivery
Packaging Details:Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size
Delivery Detail:Within 15 - 20 days after received the 30% deposit.
Our Service
Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something
unexpected, excluding delicate fittings).
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something
unexpected, excluding delicate fittings).
