Product Description

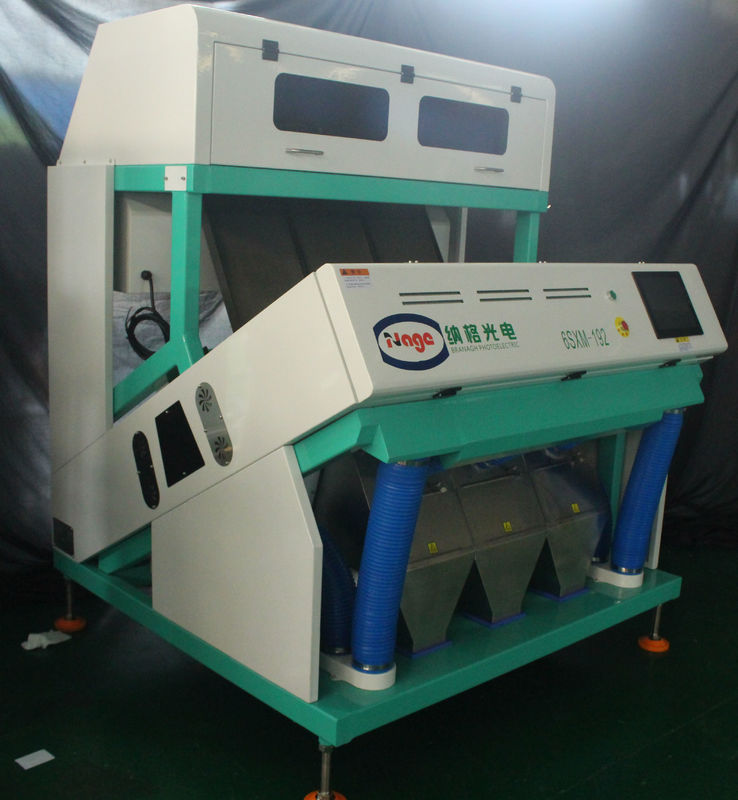

3 Chutes 192 Channels Ccd Optical Quinoa Color Separation Machine
Product Description
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper. In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
TECHNOLOGY PARAMETERS
model |
6SXM-64 |
6SXM-128 |
6SXM-192 |
6SXM-256 |
6SXM-384 |
chutes, No. |
64 |
128 |
192 |
256 |
384 |
product output |
0.5-1.5 |
1.0-2.5 |
2.0-4.5 |
3.0-6.5 |
4.0-10.0 |
sorting accuracy |
99.9 |
99.9 |
99.9 |
99.9 |
99.9 |
optimized carryover |
8:1 |
8:1 |
8:1 |
8:1 |
8:1 |
weight(kg) |
320 |
510 |
690 |
870 |
1230 |
minium identification |
0.03 |
0.03 |
0.03 |
0.03 |
0.03 |
power (kw) |
1 |
1.5 |
2 |
2.5 |
3.5 |
power supply (v/hz) |
AC220/50 |
AC220/50 |
AC220/50 |
AC220/50 |
AC220/50 |
Dimension (l*w*h)mm |
910*1476*1629 |
1414*1536*1726 |
1724*1536*1690 |
2085*1536*1690 |
2715*1536*1690 |
Detailed Images
IN CUSTOMERS SITE AND EXHIBITION :
High-quality product performance and good reputation, our products are not only successfully sold in China, but also exported to more than 20 countries and regions in the world, including: Germany, Japan, Poland, Japan, South Korea, Brazil, India, Pakistan, Nigeria Niah, Sri Lanka, Thailand, Austria, Romania and other countries, the products have been greatly welcomed and praised.
To sell the best machines at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Laser, to help others achieve their goals.
OUR COMPANY :
We are Hefei Branagh Photoelectric Technology Co.,Ltd, leader and professional manufacture of color sorter machine many years, export more than 30 countries. specially on rice color sorter, grain color sorter, bean color sorter, belt color sorter and stone color sorter manufacture and sales,
Committed to providing customers with high reliability, high quality, safety, and easy-to-operate material selection technology solutions in the field of food and industrial separation. We have an enterprising and continuous innovation team, which has formed a business model based on quality, efficiency and customer satisfaction, and continuously expands emerging application fields. With the vision of enriching and improving the quality of human life, we use our professional knowledge and experience in the field of opto-electromechanical integration to help people in different regions to accurately classify defective materials with color differences quickly and improve the use level to create The best economic and social benefits. At present, the products have been widely used in the intelligent sorting of grain, cash crops and industrial products such as rice, miscellaneous grains, plastics, ores, traditional Chinese medicine, seeds, beans and nuts, tea.
The company has always adhered to the "quality first service first" business philosophy, with "quality determines the development of science and technology to lead the future" as the core, and strive to create a world-class color sorter, so that our customers are truly satisfied with the color sorting effect, is the ultimate pursuit aims.
