• Multifunction 3 Chutes CCD Grain Sorter Machine
Multifunction 3 Chutes CCD Grain Sorter Machine

Multifunction 3 Chutes CCD Grain Sorter Machine

Product Details:

Place of Origin: HEFEI , ANHUI
Brand Name: NAGE
Certification: CE SGS
Model Number: 6SXM-192

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: , T/T, Western Union, MoneyGram
Supply Ability: 200000 SETS /YEAR
Get Best Price Contact Now

Detail Information

Applicable Industries: Food & Beverage Factory, Farms, Food Shop After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Production Capacity: 2.0-4.5 (T/H) Weight: 690KG
Dimension(L*W*H): 1724*1536*1690 NAME: 3 Chutes CCD Multi-Function Rice/Grain/Plastic Color Sorter
Capacity: 600-700KG/h Type: Rice Color Sorter MACHINE
Application: RICE PROCESSING Warranty: 1 Year
High Light:

3 Chutes Grain Sorter Machine

,

CCD Grain Sorter Machine

Product Description

                                  6SXM-192 Rice Color Sorting Machine Windows System Rice Color Sorter

Product Description
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper. In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.




  TECHNOLOGY  PARAMETERS



model 6SXM-64 6SXM-128 6SXM-192 6SXM-256 6SXM-384
chutes, No. 64 128 192 256 384
product output 0.5-1.5 1.0-2.5 2.0-4.5 3.0-6.5 4.0-10.0
sorting accuracy 99.9 99.9 99.9 99.9 99.9
optimized carryover 8:1 8:1 8:1 8:1 8:1
weight(kg) 320 510 690 870 1230
minium identification 0.03 0.03 0.03 0.03 0.03
power (kw) 1 1.5 2 2.5 3.5
power supply (v/hz) AC220/50 AC220/50 AC220/50 AC220/50 AC220/50
Dimension (l*w*h)mm 910*1476*1629 1414*1536*1726 1724*1536*1690 2085*1536*1690 2715*1536*1690



Detailed Images

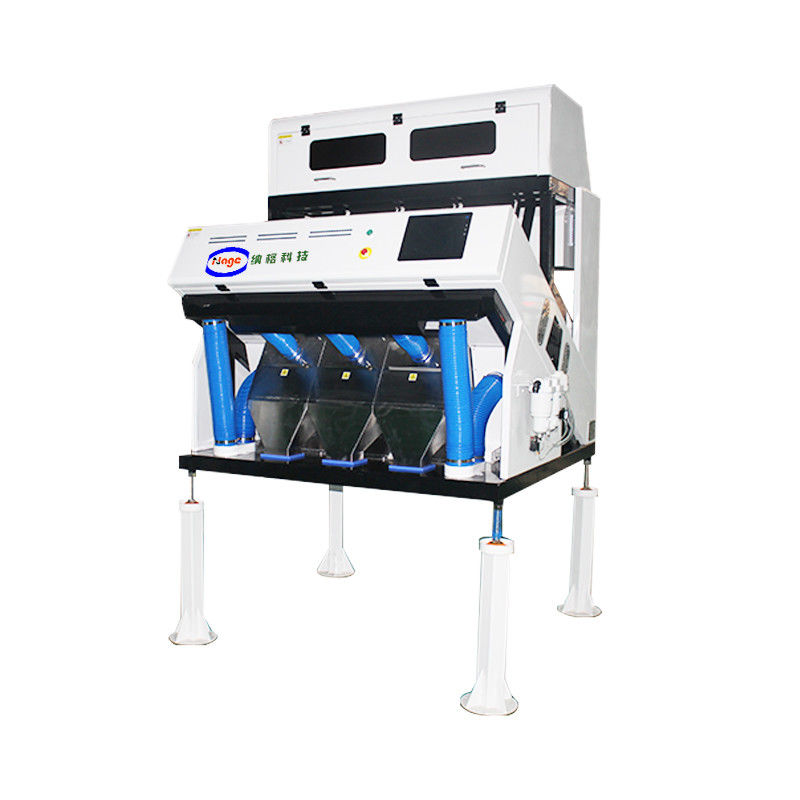

Multifunction 3 Chutes CCD Grain Sorter Machine 0
Multifunction 3 Chutes CCD Grain Sorter Machine 1
IN CUSTOMERS SITE AND EXHIBITION :

High-quality product performance and good reputation, our products are not only successfully sold in China, but also exported to more than 20 countries and regions in the world, including: Germany, Japan, Poland, Japan, South Korea, Brazil, India, Pakistan, Nigeria Niah, Sri Lanka, Thailand, Austria, Romania and other countries, the products have been greatly welcomed and praised.
Multifunction 3 Chutes CCD Grain Sorter Machine 2



To sell the best machines at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Laser, to help others achieve their goals.
Multifunction 3 Chutes CCD Grain Sorter Machine 3

OUR COMPANY :


We are Hefei Branagh Photoelectric Technology Co.,Ltd, leader and professional manufacture of color sorter machine many years, export more than 30 countries. specially on rice color sorter, grain color sorter, bean color sorter, belt color sorter and stone color sorter manufacture and sales,

Committed to providing customers with high reliability, high quality, safety, and easy-to-operate material selection technology solutions in the field of food and industrial separation. We have an enterprising and continuous innovation team, which has formed a business model based on quality, efficiency and customer satisfaction, and continuously expands emerging application fields. With the vision of enriching and improving the quality of human life, we use our professional knowledge and experience in the field of opto-electromechanical integration to help people in different regions to accurately classify defective materials with color differences quickly and improve the use level to create The best economic and social benefits. At present, the products have been widely used in the intelligent sorting of grain, cash crops and industrial products such as rice, miscellaneous grains, plastics, ores, traditional Chinese medicine, seeds, beans and nuts, tea.

The company has always adhered to the "quality first service first" business philosophy, with "quality determines the development of science and technology to lead the future" as the core, and strive to create a world-class color sorter, so that our customers are truly satisfied with the color sorting effect, is the ultimate pursuit aims.
Multifunction 3 Chutes CCD Grain Sorter Machine 4

OUR SHIPPING  :
Multifunction 3 Chutes CCD Grain Sorter Machine 5

Multifunction 3 Chutes CCD Grain Sorter Machine 6

CERTIFICATE  :

Multifunction 3 Chutes CCD Grain Sorter Machine 7
Multifunction 3 Chutes CCD Grain Sorter Machine 8
Multifunction 3 Chutes CCD Grain Sorter Machine 9
