4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera

4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera

Product Details:

Place of Origin: Anhui, China
Brand Name: Nage
Certification: CE/SGS

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Sets
Price: $13,000.00
Packaging Details: Our products use professional wooden cases with PE plastic bag.Package size will depend on each model size.
Supply Ability: 50 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Applicable Industries: Food & Beverage Factory, Farms, Home Use After Warranty Service: Spare Parts
Condition: New Production Capacity: 3.0-6.5T/H
Voltage: AC220/50(V/Hz) Power(W): 2.5KW
Weight: 870KG Dimension(L*W*H): 2085*1536*1690
Warranty: 1 Year After-sales Service Provided: Field Maintenance And Repair Service
Product Name: Peanut Color Sorter Application: Grain Processing
Function: Sorting Different Color Usage: Home Used
Feature: High Efficiency Type: Grain Processing Equipment
Capacity: 3.0-6.5T/H Raw Material: Stainless Steel
Brand: Nage Service: 24hours Online Service
Port: Shanghai
High Light:

grain color sorter machine

,

grain colour sorter

Product Description

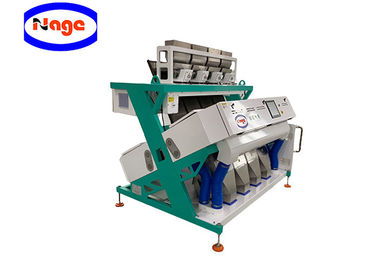

                  4 Chutes Intelligent CCD Grain Color Sorter









Product Description
NAGE intelligent CCD rice color sorter is a chute type precise selection device.Among them,the front and rear views can be equipped with visible sight mirror using the latest CCD color sensor,color selection customized lens,high-speed FPGA data processor,high-speed electromagnetic actuator and easy-to-operate human -computer interface with touch function. it is a high -tech product integrating light, machine, electricity and gas.
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 0
Technical Parameter
model 6SXM-64 6SXM-128 6SXM-192 6SXM-256 6SXM-384
chutes, No. 64 128 192 256 384
product output 0.5-1.5 1.0-2.5 2.0-4.5 3.0-6.5 4.0-10.0
sorting accuracy 99.9 99.9 99.9 99.9 99.9
optimized carryover 8:1 8:1 8:1 8:1 8:1
weight(kg) 320 510 690 870 1230
minium identification 0.03 0.03 0.03 0.03 0.03
power (kw) 1 1.5 2 2.5 3.5
power supply (v/hz) AC220/50 AC220/50 AC220/50 AC220/50 AC220/50
Dimension (l*w*h)mm 910*1476*1629 1414*1536*1726 1724*1536*1690 2085*1536*1690 2715*1536*1690
Model
6SXZ-256
Chutes No.
256
Product output(T/H)
3.0-6.5
Sorting Accuracy(%)
≥99.9
Optimized Carryover(Bad:Good)
≥8:1
Weight(KG)
870
Minimum Identification
0.03
Power(KW)
2.5
Power Supply(V/HZ)
AC220/50
Dimension (L*W*H)MM
2085*1536*1690
Examples of sorting
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 1
Detailed Images
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 2



Lens and image acquisition
CCD true color sorting technology, color high-definition recognition, high speed sorting, recognition more accurate.
5400 pixels high precision professional lens ensures image clarity and accuracy. The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 3



Image processing algorithm
Powerful image processing algorithm, using color selection and shape selection combined algorithm, can accurately identify the color and shape of materials.
Photo capture technology and high-definition imaging technology, materials and colors can be defined color selection.
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 4



Solenoid value
Using high-quality solenoid valve, high frequency and long life. While ensuring the output, the take-out ratio is reduced.




4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 5



LED light source
The newly designed LED light source has the advantages of high brightness, long life, good heat dissipation, and can be used for color sorting of various materials and colors.
Different materials do not need to replace the light source.
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 6

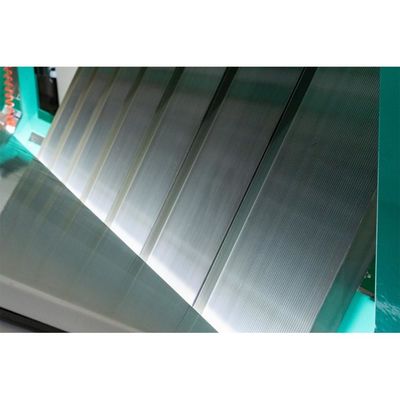

Feed tank
Special anodizing process,large output and uniform cutting. Waterfall plate and narrow chute channel to meet the color selection of different materials.
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 7



Interface Powerful software operating platform
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing&Shipping
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 8

Our services

Before sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After sale services
1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.

Our company
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 9
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 10
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 11
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 12
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 13
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 14
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 15
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 16
4 Chutes Grain Color Sorter 2085*1536*1690 High Efficiency With CCD Camera 17
FAQ
1.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.

2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.

3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.

4.Q:How about the guarantee period?
A:One year.

5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.Alibaba Trade Assurance is your best choice.

6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.

7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
