Product Details:

Place of Origin: Anhui, China
Brand Name: Nage
Certification: CE certificate SGS certificate

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Sets
Price: $14,000.00
Packaging Details: Machines will bew wrapped in professional seaworthy wooden cases Package size will depend on each model size.
Supply Ability: 2000 Set/Sets per Year
Get Best Price Contact Now

Detail Information

Name: Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Production Capacity: 5.0-12.0(T/H) Voltage: 220V/50Hz
Power(W): 4000 Weight: 1410KG
Dimension(L*W*H): 3060*1536*1690 Warranty: 1 Year
After-sales Service Provided: Field Maintenance And Repair Service Usage: Rice Polisher Whitener
Type: Agriculture Rice Milling Machine Feature: High Yield
Capacity: 600-700KG/h Advantage: High Efficiency Working
Service: 24hours Online Service
High Light:

nut cleaning machine

,

cashew colour sorting machine

Product Description

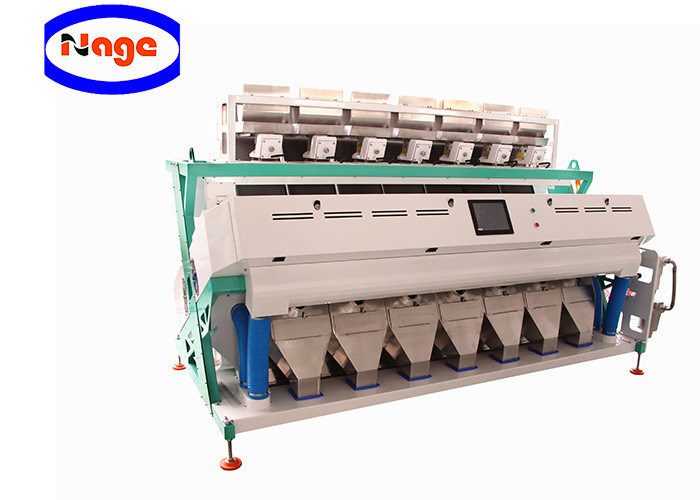

                   Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life



Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 0



Product Description
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper. In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 1
 OUR COMMITMENTS
Focus on the field of color sorting and lead the industry standards; Create unlimited possibilities. Analyze every detail and select every raw material.Multi-function,multi-purpose,widely used for rice,grain,cereal, plastics,etc.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 2

Examples of color sorting

The targeted sorting technology ensures no defect of light yellow would be missed from a million grains of rice. Standard edition with the Spectrum Confocal 2.0 removes glass, desiccants, transparent plastics and motley plastics. Flagship edition with the InGaAs Infrared system custom for rice sorting eliminates foreign materials.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 3
Detailed Images
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 4

FEATURES 1:

5400-pixel CCD camera makes sure that, it is able to recognize more accurately,analyze more quickly and sort more precisely The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.

Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 5

FEATURES 2:

Imported high-quality solenoid valves makes machines work more stably for longer time. The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 6

FEATURES 3:

Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly. It is also able to support for multiple languages, preservation and switching of multiple color selection modes
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 7

FEATURES 4:

Special anodized chutes, larger output and uniform cutting. Waterfall plate and narrow chute channel to meet the color selection of different materials Materials can be sorted according to different shapes,no need to change the light source.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 8

FEATURES 5:

Imported original ARK Filter which has high reputation in color sorter accessories market. Oil filter and water filter make sure that air shot out is clean and quick.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 9

FEATURES 6:

American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with self-learning,self-operating Powerful image processing algorithm can accurately identify the color and shape of materials.
Size Information

model 6SXM-640 6SXM-448 6SXM-512 6SXM-256 6SXM-384
chutes, No. 640 448 512 256 384
product output 8.0-18 5.0-12 6.0-14 3.0-6.5 4.0-10.0
sorting accuracy 99.9 99.9 99.9 99.9 99.9
optimized carryover 8:1 8:1 8:1 8:1 8:1
weight(kg) 1650 1410 1590 870 1230
minium identification 0.03 0.03 0.03 0.03 0.03
power (kw) 5.5 4 4.5 2.5 3.5
power supply (v/hz) AC220/50 AC220/50 AC220/50 AC220/50 AC220/50
Dimension (l*w*h)mm 3846*1587*1968 3060*1536*1690 3367*1536*1690 2085*1536*1690 2715*1536*1690
NOTE:
1.The above data is based on 5% contamination Coarse Cereals material.The real output depends on different materials and contamination. 2.1f products update,no further notice.Please refer to the real machine.
Packing&Shipping
Machines will bew wrapped in professional seaworthy wooden cases Package size will depend on each model size.
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 10
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 11
After Sales Service
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 12
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something
unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
Company Introduction
Hefei Branagh Photoelectric Technology Co.,Ltd. is a high-technology firm, which combined with design, manufacture and selling, Our firm is dedicated to providing high reliability, high quality, safety and easy-to-operate sorting machines for customers in the field of food and industrial.We have a team that is determined to make progress and keep innovating to form a business model that is oriented toward quality, efficiency ,and customer satisfaction
Through countless hardwork, we serve customers from all over the world. We are well-established in both domestic and foreign markets. Our products sold well in our country and exported to Asia,Africa,Europe,America,Australia,more than 80 countries. Now we are enjoying the high reputation in manufacturing circle.We would be pleased to enter into business relations with you!
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 13
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 14
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 15



Certificates and Patents
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 16
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 17
Convenient Using Cashew Nuts Colour Sorter Machine With Long Service Life 18
