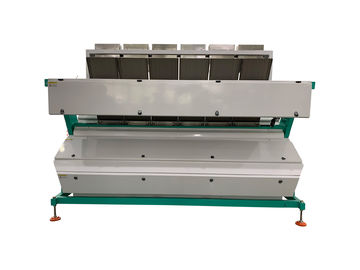

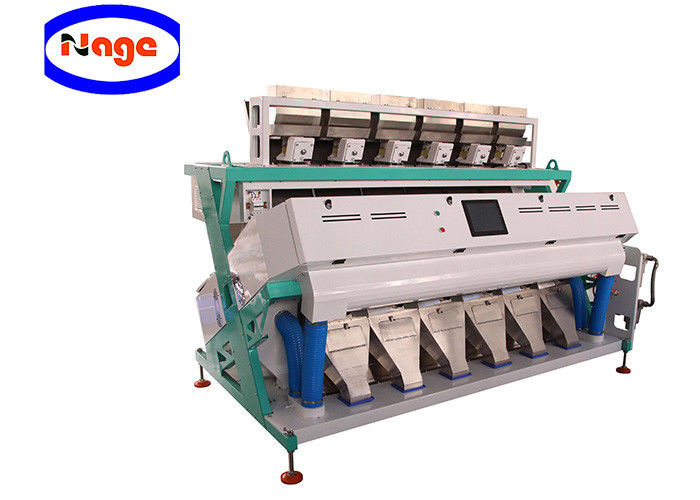

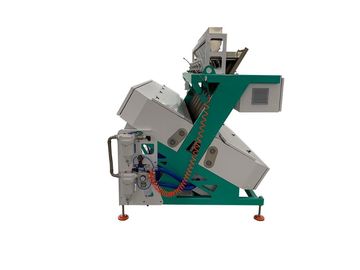

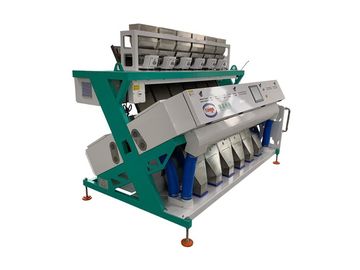

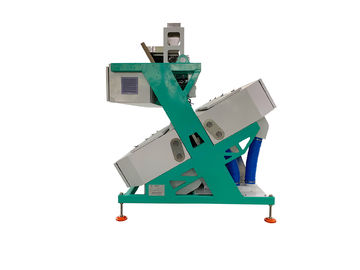

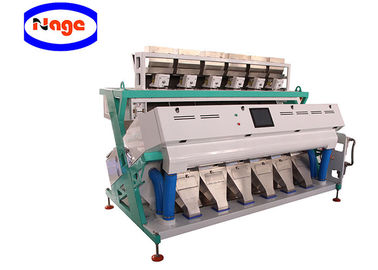

All LED Lamps Lentil Color Sorter High Out Put With CE/SGS Cetification
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | nage |
Certification: | CE SGS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 - 2 Sets |
---|---|
Price: | $20,000.00 |
Packaging Details: | Factory's standard export carton box package suitable for container shipment |
Supply Ability: | 20 Set/Sets per Week |
Detail Information |
|||
Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
---|---|---|---|
Local Service Location: | India, Thailand | Condition: | New |
Production Capacity: | 4000-9000kg/h | Voltage: | 220V |
Power(W): | 3KW | Weight: | 1230kg |
Dimension(L*W*H): | 2715mm*1536mm*1690mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
ProductOutput(T/H): | 4-9 | SortingAccuracy(%): | >=99.99 |
Minimum Ldentification: | 0.02 | Power(KW): | 3.0 |
Power Supply(V/Hz): | AC220/50 | Application: | Grain Procesing Factary |
Product Name: | Lentils Color Sorter Machine With New Technology Rice Color Sorter | Warranty: | 1 Year |
High Light: | ccd color sorter,color sorting equipment |
Product Description
Lentils Color Sorter Machine With New Technology Rice Color Sorter
Technical Parameter
model | 6SXM-640 | 6SXM-448 | 6SXM-512 | 6SXM-256 | 6SXM-384 |
chutes, No. | 640 | 448 | 512 | 256 | 384 |
product output | 8.0-18 | 5.0-12 | 6.0-14 | 3.0-6.5 | 4.0-10.0 |
sorting accuracy | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
optimized carryover | 8:1 | 8:1 | 8:1 | 8:1 | 8:1 |
weight(kg) | 1650 | 1410 | 1590 | 870 | 1230 |
minium identification | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
power (kw) | 5.5 | 4 | 4.5 | 2.5 | 3.5 |
power supply (v/hz) | AC220/50 | AC220/50 | AC220/50 | AC220/50 | AC220/50 |
Dimension (l*w*h)mm | 3846*1587*1968 | 3060*1536*1690 | 3367*1536*1690 | 2085*1536*1690 | 2715*1536*1690 |
1.The above data is based on the 3% contamination, and real output depends on the material and its contamination.
2.If products update, no further notice. Please refer to the real machine.
Technical Parameter
Brand name | Nage | Cetification | CE/SGS | |
Machine name | Optical CCD color sorter | Light source | All LED lamps | |
CCD sensor | Japan toshiba | Sorting accuracy | >99.99% | |
Filiter | Japan SMC | Channels | 256 | |
Ejector | Japan SMC | Place of origin | Anhui china | |
FPGA | America chip | Capacity | 3-8T/H |
1,Advanced image acquisition system
NAGE color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.
2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
4,High quality solenoid valve(ejector)
NAGE color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, NAGE optical sorters use the solenoid valve of different sizes.
5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.
6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
Examples of Sorting
Packaging & Shipping
After-sales Services
1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.
FAQ
1.Q:How about engineers service oversea?
A:Engineers available to service machinery overseas.
2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
4.Q:How about the guarantee period?
A:One year.
5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.Alibaba Trade Assurance is your best choice.
6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.
7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
