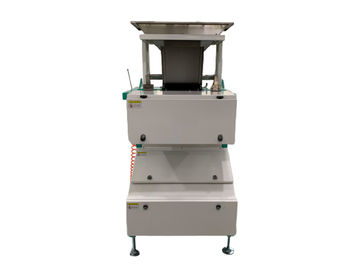

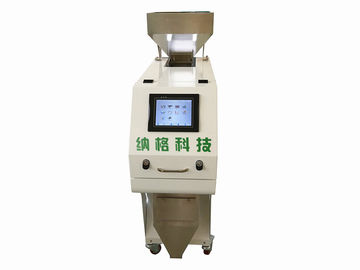

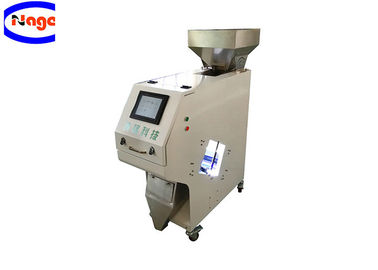

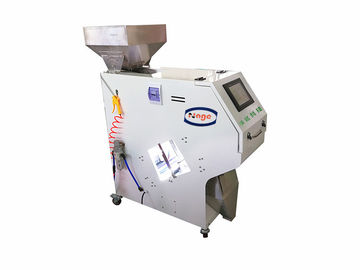

Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling

Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling

Product Details:

Place of Origin: Anhui, China
Brand Name: Nage
Certification: CE/SGS

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Sets
Price: $4,500.00
Packaging Details: Our products use professional wooden cases with PE plastic bag.Package size will depend on each model size.
Supply Ability: 50 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Applicable Industries: Food & Beverage Factory, Farms, Home Use After Warranty Service: Spare Parts
Production Capacity: 500-800(KG/H) Voltage: 220V/50Hz
Power(W): 0.3KW Weight: 150KG
Dimension(L*W*H): 1100*400*1500 Warranty: 1 Year
After-sales Service Provided: Field Maintenance And Repair Service Product Name: Mini Rice Mill
Application: Rice Mill Industry Name: Rice Color Sorter
Function: Rice Processsing Type: Agriculture Rice Milling Machine
Feature: High Efficiency Capacity: 500-800kg/h
Brand: Nage Service: 24hours Online Service
High Light:

mini color sorter

,

rice colour sorter machine

Product Description

Product Description
Mini intelligent Mini Color Sorter CCD rice mill

NAGE intelligent CCD rice color sorter is a chute type precise selection device.Among them,the front and rear views can be equipped with visible sight mirror using the latest CCD color sensor,color selection customized lens,high-speed FPGA data processor,high-speed electromagnetic actuator and easy-to-operate human -computer interface with touch function. it is a high -tech product integrating light, machine, electricity and gas.
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 0
Technical Parameter
Model
Mini32
Chutes No.
32
Product output(KG/H)
500-800
Sorting Accuracy(%)
≥99.9
Optimized Carryover(Bad:Good)
≥10:1
Weight(KG)
150
Power(KW)
1.5
Power Supply(V/HZ)
AC220/50
Dimension (L*W*H)MM
1100*400*1500
Examples of sorting
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 1
Detailed Images
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 2



Lens and image acquisition
CCD true color sorting technology, color high-definition recognition, high speed sorting, recognition more accurate.
5400 pixels high precision professional lens ensures image clarity and accuracy. The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 3



Image processing algorithm
Powerful image processing algorithm, using color selection and shape selection combined algorithm, can accurately identify the color and shape of materials.
Photo capture technology and high-definition imaging technology, materials and colors can be defined color selection.
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 4



Solenoid value
Using high-quality solenoid valve, high frequency and long life. While ensuring the output, the take-out ratio is reduced.




Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 5



LED light source
The newly designed LED light source has the advantages of high brightness, long life, good heat dissipation, and can be used for color sorting of various materials and colors.
Different materials do not need to replace the light source.
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 6



Feed tank
Special anodizing process,large output and uniform cutting. Waterfall plate and narrow chute channel to meet the color selection of different materials.
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 7



Interface Powerful software operating platform
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing&Shipping
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 8

Our services

Before sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After sale services
1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.

Our company
Chute Type Mini Color Sorter Machine High Efficiency For Rice Milling 9
