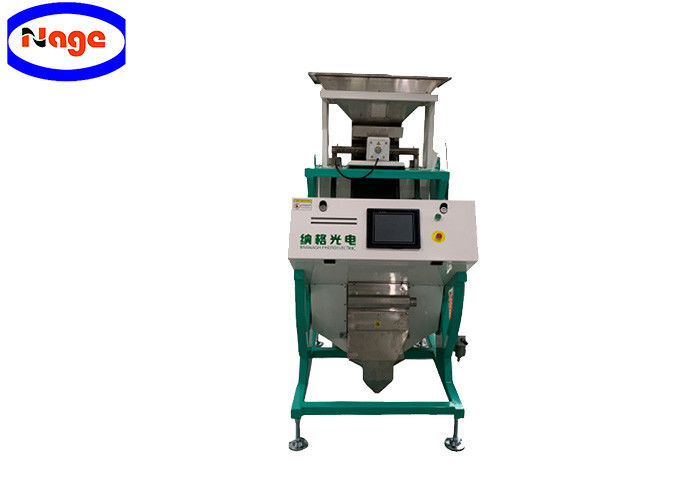

AC220/50 Intelligent Grain Color Sorter For Food & Beverage Factory
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | Nage |
Certification: | CE/SGS |
Payment & Shipping Terms:
Minimum Order Quantity: | >=1 Sets |
---|---|
Price: | $6,500.00 |
Packaging Details: | Factory's standard export carton box package suitable for container shipment |
Supply Ability: | 50 Set/Sets per Month |
Detail Information |
|||
Applicable Industries: | Food & Beverage Factory, Home Use | Condition: | New |
---|---|---|---|
Production Capacity: | 0.5-1.5 | Voltage: | AC220/50(V/Hz) |
Power(W): | 1(KW) | Weight: | 320(KG) |
Dimension(L*W*H): | 910*1476*1629(MM) | Warranty: | 1 Year |
After-sales Service Provided: | Field Maintenance And Repair Service | Product Name: | Color Sorter |
Application: | Grain Processing | Name: | Mini Combined Rice Milling Machine |
Function: | Sorting | Usage: | Home Used |
Type: | Grain Processing Equipment | Feature: | High Efficiency |
Advantage: | High Efficiency Working | Quality: | Top Level |
Port: | Shanghai | ||
High Light: | grain sorter machine,grain colour sorter |
Product Description
Product Description
Intelligent CCD Color Sorting Machine For Grain
NAGE intelligent CCD rice color sorter is a chute type precise selection device.Among them,the front and rear views can be equipped with visible sight mirror using the latest CCD color sensor,color selection customized lens,high-speed FPGA data processor,high-speed electromagnetic actuator and easy-to-operate human -computer interface with touch function. it is a high -tech product integrating light, machine, electricity and gas.
Technical Parameter
model | 6SXM-64 | 6SXM-128 | 6SXM-192 | 6SXM-256 | 6SXM-384 |
chutes, No. | 64 | 128 | 192 | 256 | 384 |
product output | 0.5-1.5 | 1.0-2.5 | 2.0-4.5 | 3.0-6.5 | 4.0-10.0 |
sorting accuracy | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
optimized carryover | 8:1 | 8:1 | 8:1 | 8:1 | 8:1 |
weight(kg) | 320 | 510 | 690 | 870 | 1230 |
minium identification | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
power (kw) | 1 | 1.5 | 2 | 2.5 | 3.5 |
power supply (v/hz) | AC220/50 | AC220/50 | AC220/50 | AC220/50 | AC220/50 |
Dimension (l*w*h)mm | 910*1476*1629 | 1414*1536*1726 | 1724*1536*1690 | 2085*1536*1690 | 2715*1536*1690 |
Examples of sorting

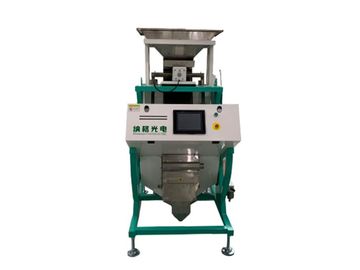

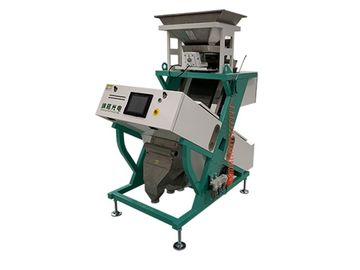

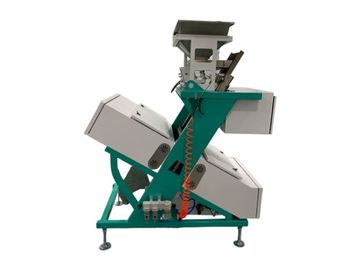

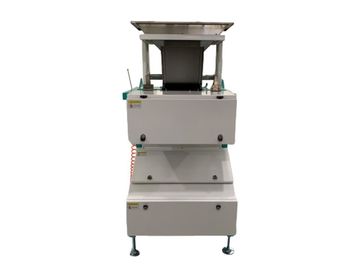

Detailed Images

Lens and image acquisition
CCD true color sorting technology, color high-definition recognition, high speed sorting, recognition more accurate.
5400 pixels high precision professional lens ensures image clarity and accuracy. The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.

Image processing algorithm
Powerful image processing algorithm, using color selection and shape selection combined algorithm, can accurately identify the color and shape of materials.
Photo capture technology and high-definition imaging technology, materials and colors can be defined color selection.

Solenoid value
Using high-quality solenoid valve, high frequency and long life. While ensuring the output, the take-out ratio is reduced.

LED light source
The newly designed LED light source has the advantages of high brightness, long life, good heat dissipation, and can be used for color sorting of various materials and colors.
Different materials do not need to replace the light source.

Feed tank
Special anodizing process,large output and uniform cutting. Waterfall plate and narrow chute channel to meet the color selection of different materials.

Interface Powerful software operating platform
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing&Shipping

Our services
Before sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After sale services
1.We provide customer with one year free repair and maintenance for complete machine.
2.We also provide lifetime professional training and technical guidance service.
2.We also provide lifetime professional training and technical guidance service.
