8 Chute Color Sorting Machine Long Life Time With Big Capacity

8 Chute Color Sorting Machine Long Life Time With Big Capacity

Product Details:

Place of Origin: China
Brand Name: Nage
Certification: SGS CE

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Sets
Price: $19,500.00
Packaging Details: Our color sorter package by the export standard wooden casesPackage size will depend on each model
Supply Ability: 30 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Food & Beverage Factory, Farms, Home Use, Food Shop Condition: New
Production Capacity: 6.0-14T/H Voltage: 222V
Power(W): 4.5KW Weight: 1590KG
Dimension(L*W*H): 3367*1536*1690 Warranty: 1 Year
After-sales Service Provided: Free Spare Parts Feature: High Efficiency
Service: 24hours Online Service Advantage: High Efficiency Working
Color: White Green Keyword: Rice Milling Rice Polishing
Type: Agriculture Rice Milling Machine Brand: Nage
Quality: High Standard Port: Shanghai Port
High Light:

rice sorting machine

,

rice color sorting machine

Product Description

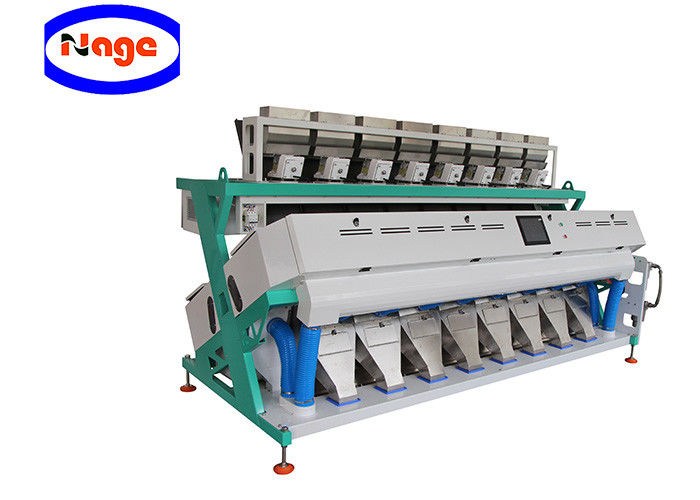

8 Chute Color Sorting Machine Long Life Time With Big Capacity

1,Advanced image acquisition system
NAGE color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.

2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.

3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.

4,High quality solenoid valve(ejector)
NAGE color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, NAGE optical sorters use the solenoid valve of different sizes.

5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.

6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.





8 Chute Color Sorting Machine Long Life Time With Big Capacity 0



model 6SXM-640 6SXM-448 6SXM-512 6SXM-256 6SXM-384
chutes, No. 640 448 512 256 384
product output 8.0-18 5.0-12 6.0-14 3.0-6.5 4.0-10.0
sorting accuracy 99.9 99.9 99.9 99.9 99.9
optimized carryover 8:1 8:1 8:1 8:1 8:1
weight(kg) 1650 1410 1590 870 1230
minium identification 0.03 0.03 0.03 0.03 0.03
power (kw) 5.5 4 4.5 2.5 3.5
power supply (v/hz) AC220/50 AC220/50 AC220/50 AC220/50 AC220/50
Dimension (l*w*h)mm 3846*1587*1968 3060*1536*1690 3367*1536*1690 2085*1536*1690 2715*1536*1690



1.The above data is based on the 3% contamination, and real output depends on the material and its contamination.

2.If products update, no further notice. Please refer to the real machine.



8 Chute Color Sorting Machine Long Life Time With Big Capacity 1

8 Chute Color Sorting Machine Long Life Time With Big Capacity 2









8 Chute Color Sorting Machine Long Life Time With Big Capacity 3

 8 Chute Color Sorting Machine Long Life Time With Big Capacity 4



8 Chute Color Sorting Machine Long Life Time With Big Capacity 5

8 Chute Color Sorting Machine Long Life Time With Big Capacity 6



8 Chute Color Sorting Machine Long Life Time With Big Capacity 7



1.We provide customer with one year free repair and maintenance for complete machine.

2.We also provide lifetime professional training and technical guidance service.





8 Chute Color Sorting Machine Long Life Time With Big Capacity 8



1.Q:How about engineers service oversea?

A:Engineers available to service machinery overseas.



2.Q:How to use the machine?

A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.



3.Q:How about the sample machines for testing?

A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.



4.Q:How about the guarantee period?

A:One year.



5.Q:Will you accept L/C as payment?

A:L/C ,T/T is OK.Alibaba Trade Assurance is your best choice.



6.Q:Do you have any other spare parts for the customer?

A:Yes,we will supply you some spare parts.



7.Q:Which machine will work together with our color sorter which you can supply?

A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
