Product Details:

Place of Origin: Anhui, China
Brand Name: Nage
Certification: CE certificate SGS certificate

Payment & Shipping Terms:

Minimum Order Quantity: >=1 Sets
Price: $13,000.00
Packaging Details: Machines will bew wrapped in professional seaworthy wooden cases Package size will depend on each model size.
Supply Ability: 20 Set/Sets per Week
Get Best Price Contact Now

Detail Information

Condition: New Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms
After Warranty Service: Video Technical Support, Spare Parts Voltage: AC220/50Hz
Power(W): 2000 Dimension(L*W*H): 1724*1536*1690
Weight: 690KG Warranty: 1 Years
After-sales Service Provided: Field Installation, Commissioning And Training Application Fields: Snack Food Factory, Meat Processing Plants, Fruit Processing Plant, Vegetable Processing Plant, Seasoning Plant
Machinery Function: Sorting And Separating Raw Material: Fruit, Corn, Wheat, Vegetables, Soybean
Output Product Name: Nage Name: 2020 New Model Lentils Color Sorters Machine
Application: Food Industry Product Name: Color Sorter Machine
Usage: Food Industry Equipment Capacity: Diffrent Capacity
Keywords: 2020 New Model Lentils Color Sorters Machine Feature: High Efficiency
Package: Wooden Case Advantage: Easy Operation High Efficiency
Shipping Type: Ocean
High Light:

coffee bean color sorter

,

color sorting equipment

Product Description

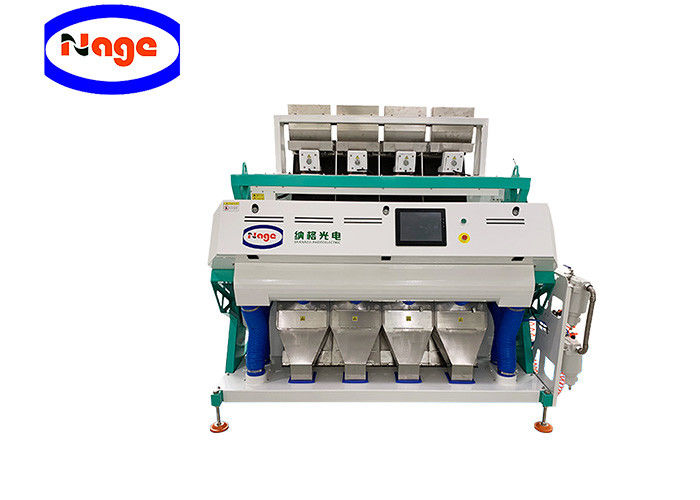

2020 New Model Lentils Color Sorters Machine







Product Description
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper. In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 0
OUR COMMITMENTS
Focus on the field of color sorting and lead the industry standards; Create unlimited possibilities. Analyze every detail and select every raw material.Multi-function,multi-purpose,widely used for rice,grain,cereal, plastics,etc.
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 1

Examples of color sorting

The targeted sorting technology ensures no defect of light yellow would be missed from a million grains of rice. Standard edition with the Spectrum Confocal 2.0 removes glass, desiccants, transparent plastics and motley plastics. Flagship edition with the InGaAs Infrared system custom for rice sorting eliminates foreign materials.
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 2
Detailed Images
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 3

FOCUS 1:

5400-pixel CCD camera makes sure that, it is able to recognize more accurately,analyze more quickly and sort more precisely The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 4

FOCUS 2:

Imported high-quality solenoid valves makes machines work more stably for longer time. The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance.
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 5

FOCUS 3:

Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.
It is also able to support for multiple languages, preservation and switching of multiple color selection modes
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 6

FOCUS 4:

American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with
self-learning,self-operating Powerful image processing algorithm can accurately identify the color and shape of materials.
Size Information

model 6SXM-64 6SXM-128 6SXM-192 6SXM-256 6SXM-384
chutes, No. 64 128 192 256 384
product output 0.5-1.5 1.0-2.5 2.0-4.5 3.0-6.5 4.0-10.0
sorting accuracy 99.9 99.9 99.9 99.9 99.9
optimized carryover 8:1 8:1 8:1 8:1 8:1
weight(kg) 320 510 690 870 1230
minium identification 0.03 0.03 0.03 0.03 0.03
power (kw) 1 1.5 2 2.5 3.5
power supply (v/hz) AC220/50 AC220/50 AC220/50 AC220/50 AC220/50
Dimension (l*w*h)mm 910*1476*1629 1414*1536*1726 1724*1536*1690 2085*1536*1690 2715*1536*1690
NOTE:
1.The above data is based on 5% contamination Coarse Cereals material.The real output depends on different materials and contamination. 2.1f products update,no further notice.Please refer to the real machine.


AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 7

AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 8


Packing&Shipping
Machines will bew wrapped in professional seaworthy plywood cases Package size will depend on each model size.
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 9
After Sales Service
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
Company Introduction
Hefei Branagh Photoelectric Technology Co.,Ltd. is a high-technology firm, which combined with design, manufacture and selling, Our firm is dedicated to providing high reliability, high quality, safety and easy-to-operate sorting machines for customers in the field of food and industrial.We have a team that is determined to make progress and keep innovating to form a business model that is oriented toward quality, efficiency ,and customer satisfaction. Through countless hardwork, we serve customers from all over the world. We are well-established in both domestic and foreign markets. Our products sold well in our country and exported to Asia,Africa,Europe,America,Australia,more than 80 countries. Now we are enjoying the high reputation in manufacturing circle.We would be pleased to enter into business relations with you!
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 10
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 11
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 12
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 13



Certificates and Patents
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 14
AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / 15
FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the warranty period?
One year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the related spare parts,such as,ejectors, air compressors, CCD cameras, and solenoid valves?
Yes, we can provide above equipments for free within one year.

4. Is overseas service available?
Yes, our engineers could go abroad when required.
